Description

Specifications of swing grinder

• Model: OSG
• Output capacity: 2 kg/h
• Power consumption: 5 amps
• Motor power: 340-500 Watt
• Weight: 11 kg

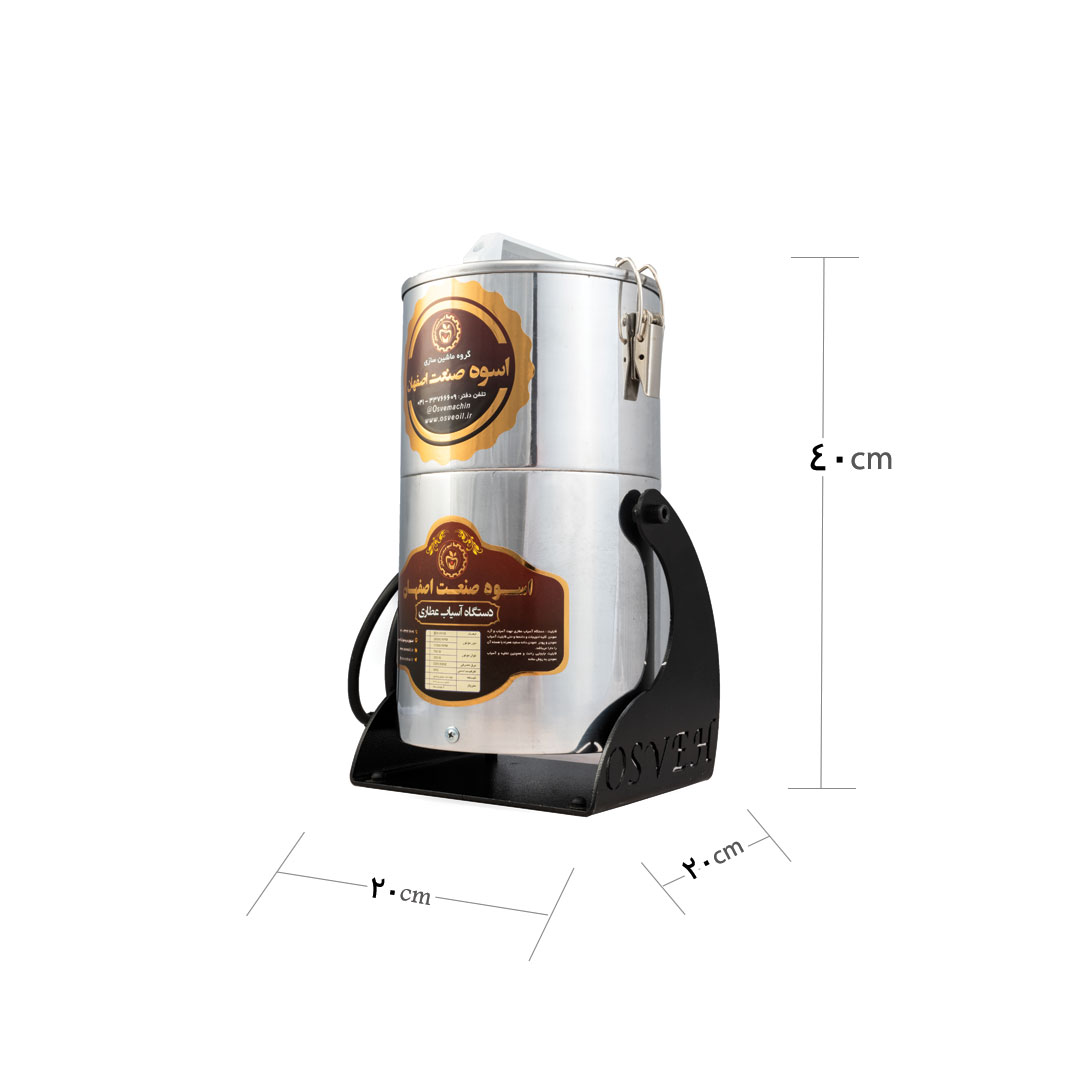

• Dimensions: 20*20*40 cm
• Model: blade
• Rotating speed of the motor: 18000
• Power type: single phase
• Need to crack the material into smaller pieces beforehand: no
• Wheels: no
• cyclone and blower: no

Descriptions of Osveh swing grinder

• Equipped with abrasion resistant steel blades
• Doubled walled (the body material is aluminum and the inner wall is stainless steel)
• Grinds most kinds of dry and hard herbal materials
• Essential for all herbal stores
• grinds spices before customers
• grinds materials within 30 seconds
• Suitable for works from home
• Suitable for grinding dried fruit
• The outer wall is made of aluminum because it has the highest thermal conductivity thus the lowest noise is made.
• Easy to empty out the chamber due to its swinging feature.
• Quick and easy to clean.
• Equipped with rubber dampers that help to reduce vibration and prevent damage to the grinder.
• User safety (if the blade breaks, it will not get out).
• Equipped with Bimetallic strips.
• It has ON/OFF switch

note

It is useful to know that this product can only grind dry items. If you use it to grind wet and oily seeds, the moisture and grease will affect the engine adversely. Hence, rice and flour can be used to absorb the moisture and grease.

How to operate the grinder:

1. a) The chamber must be halfway filled with the material.
2. b) Close the washer lid.
3. c) Switch on the grinder.

Please notice that you switch off the grinder every five seconds to let it pulverize the materials and then restart it. This process should be done three times in a raw to have finer materials.

If the breaker trips:

1. a) let the engine cool down and then press the ON button.

b) make sure that you have hit the OFF button to switch the grinder off. Otherwise, the next time you plug it in, the grinder will operate unexpectedly.

Do not wash the grinder with water; you can clean it with a damp cloth or a brush.

There are two charcoals at the bottom of the grinder. If they spark, do not worry. Just replace them.

Note: the less material you pour into the chamber, the faster the grinder pulverizes.
