Description
Desktop hammer mill grinder specifications
Material: Stainless Steel Tank, Color Coated Body
Motor Power: 3 HP, Single Phase
Output Capacity: 25 kg/h
Input Voltage: 2.2 kW
Dimensions:52*50*40/ 40*50*72 cm
Power Type: Electric
Use: Commercial, Industrial
Guarantee Length: 12 months
After-sales Service Support: 60 months

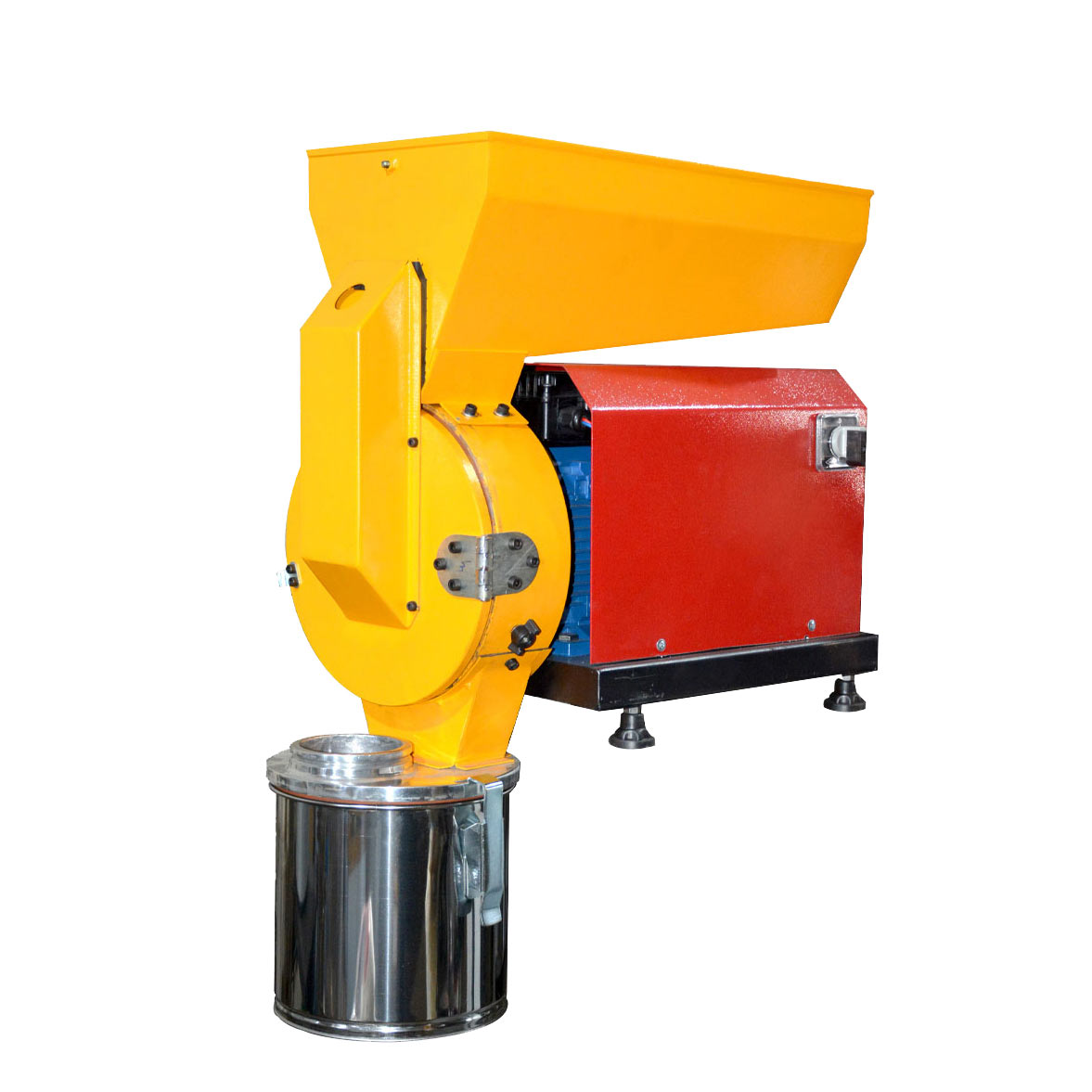

3 hp Desktop Hammer Mill Grinding Machine Descriptions
3 hp hammer mill grinders are useful for those who would like to set up a production line at shops. The output capacity of this machine is 25 kilogram per hour. All the grinding machines have a slicer inside, so that you do not need to pre-grind and screen the materials. Since these grinders are facilitated with slicers, it is worthy of note that you put the materials inside the grinder gradually; so that the materials will be ground finely and the engine will not be under pressure.
More Descriptions of Osveh Hammer Mill Grinders
Isfahan Osveh Sanat hammer mill grinder has been manufactured with the newest technological materials. The machines are to a standard design. The quality requirements are fulfilled.
Osveh Sanat grinder machines grind grains and medical herbs in swing and hammer mill types and different sizes. In fact, the grinders are stable running, low noise, and beautifully designed, professionally suitable for crushing processing of aquatic feed and livestock granules.
Osveh hammer mills grind wheat into flour finely. The most appropriate full screen hammer mills are those facilitated with cyclone and blower.
If you would like to grind both soft and hard materials, we recommend that you use a half-screen hammer mill. Isfahan Osveh Sanat Company designs and manufactures half-screen hammer mills with the use of current knowledge.
There is a gear above the full screen hammer mills that pulverizes the material many times more and facilitates the grinding process.
(Since the full screen hammer mills have larger bowls and there is an empty space behind the screens, their bodies are 10 hp).
Half Screen Hammer Mills:
These types of grinders are for pulverizing soft materials like wheat, pharmaceutical herbs, oil seeds (at most 10% fat), with the power of 2, 3, 4, 5, 10, 20, and 40 hp engines.
The only difference between this type of grinders and gear butterfly grinders is their butterfly and screens.
5 HP Hammer Mill Grinder
How to change the screen:
Switch off the machine. Having the material discharged, untie the screen bolts by means of a wrench, unclog the screen, and then reinstall the screen, reset the fuse breaker and switch on the machine after 5 minutes.
Equipment delivered together with the grinders is as follows:
A stainless steel container+2 bags+ a wrench+ 4 screens.
5 and 10 hp grinders have 4 screens: 0.7, 1, 3, and 6 mill screens.
3 and 20 hp grinders have 4 screens.
40 hp grinders have 2 screens.
The most used screen is the 0.7 mill screen that grind the spices such as turmeric or pepper finely.
The 0.5 mill screen is used to grind wheat into flour.
Using 0.5 mill screen takes longer time to grind because of its very tiny holes.
If the ground material is in large size, check out the screen and attach it to the body completely.
If the ground material is coarse, it means that you must choose a right mill screen size. For instance, 4 and 5 mill screen is good for flesh jujube.
3 mill screen is for dried jujube. 5 or 6 mill screen is for fresh jujube since they are wet.
How to operate the 3 hp Hammer Mill Grinder
- single phase grinders operate by just plugging the grinder into the socket.
However, if you would like to operate three-phase grinder, you must ask an electrician for help to operate the machine.
- put the screen in its right position.
- check out the rotational direction of the three spinner and the butterfly.
- close the lid of the machine and tighten the bolts firmly.
- If the grinder has blower and cyclone, fasten the cyclone step by step.
- mount the bag carefully. Make sure the rubber band is inside the groove.
- close the lid of the hopper so that the material will not enter the grinder. Switch on the grinder.
- check out if the grinder body is not hot and under pressure. If the grinder is hot, switch off the machine for 5 minutes and let it cool down.Pour the seeds into the chamber.Open the air valve (coin air valve).Open the hopper valve slowly so that the materials enter the grinder slowly and bit by bit. (if you would like the grinder to work automatically, you must use the vibrating hopper and the vacuum system)
- Taking the amount of materials entering the grinder into consideration, helps the machine work without being under pressure and making rumbling noise.
- having all the materials entered the grinder, please wait for 10 seconds so that all the materials will be ground. Then switch off the machine.
- after the grinding process, clean the inside part of the bowl with a brush.
Note:
avoid pouring greasy and wet seeds into the machine such as sesame, fennel flower, caraway or coriander.
All the grinders above 5 hp are three phase, and the grinders below 5 hp are single phase. It is worth noting that single phase grinders can be converted to three phase.
The benefit of converting the grinder from single phase to three phase: It can transmit more power.
