Description

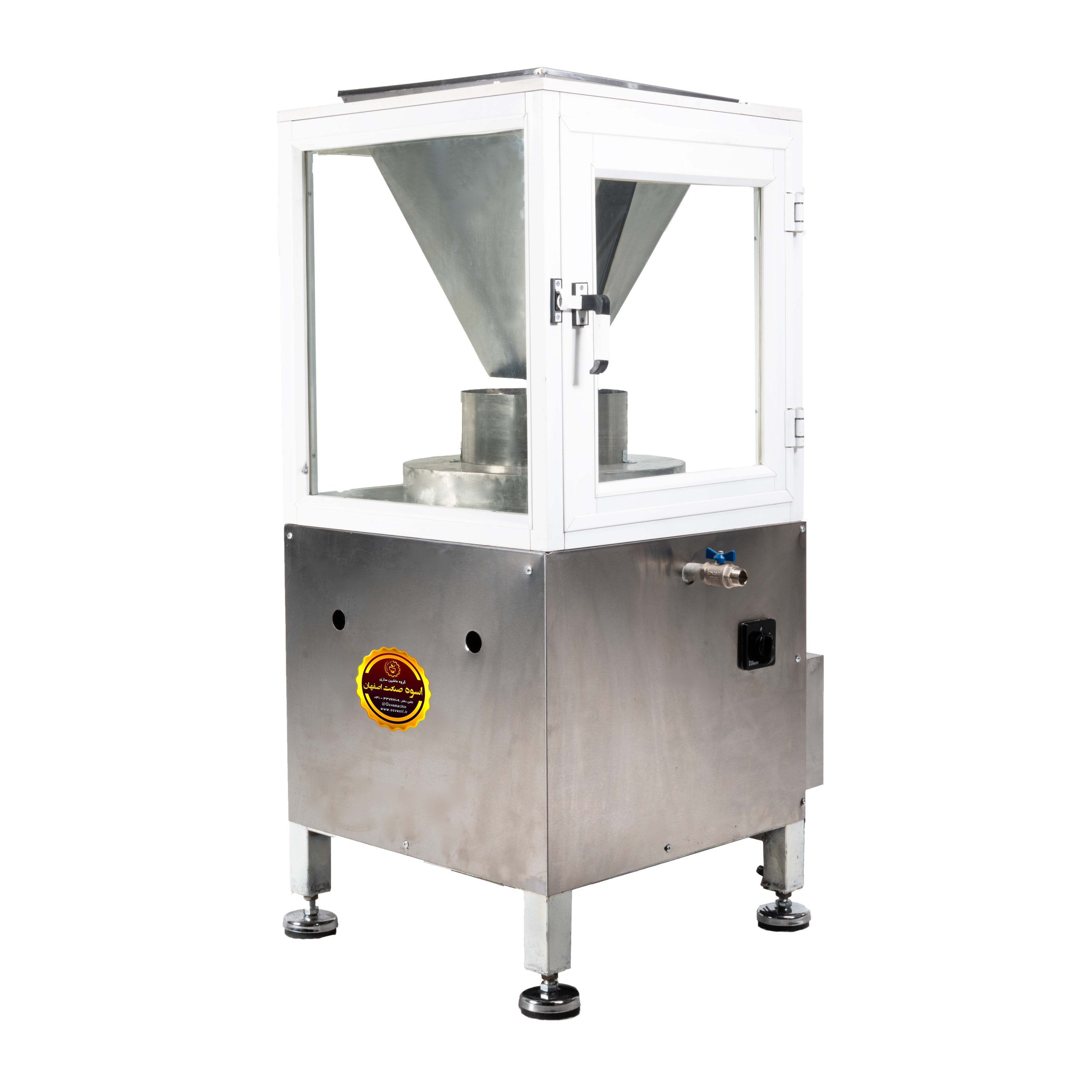

Traditional Tahini Grinding Machine
Isfahan Osveh Sanat Company is one of the largest producers of traditional tahini grinding machines by means of natural stones. Osveh tahini grinding machines are manufactured in different variety of designs and sizes for domestic, commercial, and industrial purposes. The machines make quality tahini by means of quality stones. The engine rotates at both low and high speeds to produce coarse and fine tahini, respectively.
The optimum patterns of grooves carved on the millstones, make the machines at 100% efficiency.
Osveh tahini grinding machines come in two forms:
1- cubic
2- Cylindrical
How to operate the tahini grinding machine:
- Connect the tahini grinding machine to the power.
- Pour the sesame seeds into the hopper.
- Open the drawer valve under the hopper, so that the sesame seeds move towards the stone easily.
- Switch on the machine. (In tahini grinding machines with inverter, the key start is on the electrical control panel; and in tahini grinding machines without inverter, the key start is on the front of the machine).
The Benefits of Inverter on Tahini Grinding Machine:
– It reduces mechanical impacts, thus extending motor life
– The machine operates without pressure on the suspension system
– It protects the electric motor from a heavy burden by switching off the machine.
– It prevents the engine from heating up
– Using single-phase power instead of three-phase power, and maintaining work efficiency.
|
Model |
Output Capacity |
Power Consumption |
Dimensions (cm) |
Weight |
Lower Stone Diameter |
Upper Stone Diameter |
Inverter |
|
ODR 45 |
3-4 kg |
2/2 kW |
60*60*130 |
240 kg |
60 cm |
45 cm |
no |
|
ODR 55 |
4-6 kg |
2/2 kW |
65*65*130 |
270 kg |
65 cm |
55 cm |
no |
|
ODR 60 |
6-7 kg |
3 kW |
70*70*130 |
300 kg |
75 cm |
60 cm |
no |
|
ODR 65 |
7-8 kg |
3 kW |
75*75*130 |
350 kg |
75 cm |
65 cm |
no |
|
ODR 70 |
8-10 kg |
3 kW |
85*85*130 |
380 kg |
85 cm |
70 cm |
yes |
|
ODR 75 |
10-12 kg |
3/7 kW |
90*90*150 |
400 kg |
90 cm |
75 cm |
yes |
|
ODR 80 |
12-15 kg |
5 kW |
95*95*150 |
700 kg |
95 cm |
80 cm |
yes |
|
ODR 85 |
15-18 kg |
5 kW |
100*100*150 |
850 kg |
100 cm |
85 cm |
yes |
|
ODR 110 |
18-20 kg |
7/5 kW |
1150*115*150 |
1 ton |
115 cm |
110 cm |
yes |
Traditional Tahini Grinding Machine
Mehriz-Yazd Stone
Single-phase Power
