Description

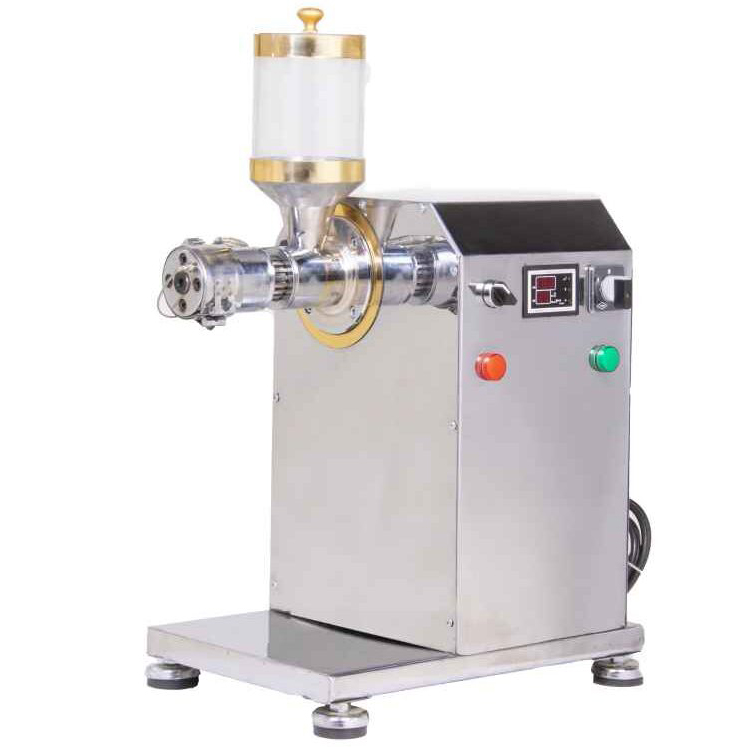

Cold Press Oil Machine Caliber 28
Model No: ODK 28
Press Method: Cold Press Method
Output Temperature: 45 degrees
Material: Steel
Energy Consumption: 1 kW/h
Dimensions: 72*32*57
Automatic Thermal System: Yes
Use: Domestic, Commercial
Input Capacity: 4 kg/h
Designed for Hard Seeds: Yes
Inverter: Yes
Cooling System: Yes
Thermal System: Yes
Capability: Works 24 hours
Guaranteed: 1 Year
After Sales Service: 5 Years
Descriptions of Cold Press Oil Machine Caliber 28
There are two methods of extracting oil from oilseeds:
1- hot pressed oil
2- cold-pressed oil
In brief, Hot-pressed oil means that the oilseeds are roasted and pressed under high temperatures. But, this method is for industrial companies. However, cold-pressed oil means that the oilseeds are raw and pressed at a low temperature, under 43 degrees centigrade; so that the beneficial compounds are retained. Hence, this method is the healthiest way to make herbal oils.
Isfahan Osveh Sanat Company manufactures and distributes oil press machines that come in varieties of power, capacity, and dimension. In fact, Osveh Oil Press Machines are capable of extracting oils from both soft and hard seeds such as sesame, sunflower seeds (with and without shell), flaxseeds, pumpkin seeds, coconut milk powder, fennel, bitter almond, sweet almond, hazelnut, argan, opium poppy, caraway, fennel flower, rapeseed, pistachio, walnut, grapeseed or pomegranate seed. Moreover, Osveh Cold Press Oil Machines are easy to operate, and low in noise.
Above all, all types of Osveh Cold Press Oil Machines have 1 year guarantee 5-year after-sales services.
This type of oil press machine contains a 110 mm marathon, designed for hypermarkets, traditional medicine centers, and industries. The whole machine is low in noise and works nonstop. Osveh oil extractor is able to extract oil from small seeds such as sesame, sunflower seeds, flaxseeds, or fennel.
Model |
Input (kg/h) |
Power Consumption (kW) |
Machine Dimensions (cm) |
ODK 22 |
4 |
0.3 |
20*30*40 |
ODK 40 |
8 |
1 |
60*80*110 |
ODK 60 |
15 |
1.5 |
65*90*120 |
ODK 90 |
25 |
4 |
65*110*130 |
ODK 110 |
40 |
7.5 |
65*140*140 |
How to assemble ODK 28 cold press oil machine:
- Place the screw inside according to its grooves.
- Put the screw inside the gearbox.
- Fasten the bolts.
- Assemble the element and the sensor.
It is worth noting that there is a large bolt behind the machine to adjust the screw. This bolt is also used to adjust the hardness and softness of the press cake getting out from the front part of the cylinder. If you unfasten the bolt, the distance between the screw and the cylinder will be longer, and the press cake will be coarse. If you fasten the bolt tighter, the distance between the screw and the cylinder will be shorter and the press cake will be soft.
How to take apart ODK 22 cold press oil machine:
- Remove the chamber.
- Unfasten the sensor and the element bolts in front of the cylinder.
- Unfasten the 4 bolts in front of the machine that fasten the cylinder.
- Clean the screw and inner part of the cylinder.
- Put the screw inside the gearbox again.
