Description

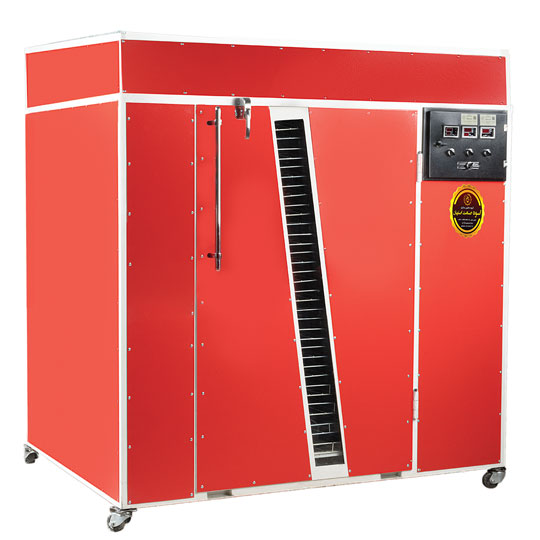

Specifications of 500 kg Dehydrator

The technical specifications of the Osveh 500 kg food dehydrator are presented in a detailed manner in the table given below.

Why Osveh Dehydrators?

Isfahan Osveh Machine Building Group is renowned for being one of the top manufacturers of dehydrators. With Osveh Sanat dehydrators, there is no need to add preservatives or sugar to the fruit, as the results speak for themselves in terms of quality.

When it comes to dehydrating various fruits and vegetables such as saffron, garlic, shallot, onion, oleaster, sprouted grains, jujube, mushroom, okra, reishi mushroom, meat, shrimp, kashk, and oak, hot air circulation dehydrators prove to be highly effective and cost-efficient. These dehydrators ensure even heating, preserving the nutritional value of the ingredients.

To cater to different customer needs, the heating source can be electricity, gas, or gasoline. Additionally, the dehydrators are equipped with thermal insulation made of mineral wool, which enhances heat efficiency and saves energy.

Osveh Dehydrator Equipment

Osveh dehydrators are equipped with various components to ensure efficient dehydration. These include heating systems such as furnaces, industrial gas, gasoline, and electric burners, as well as burner management systems and smoke control systems. The dehydrators also feature a humidistat to regulate humidity levels and an airflow system for optimal air circulation.

The airflow system in the dehydrators utilizes suction and blowing mechanisms to evenly distribute the heat generated by the thermal transfer system. This ensures that fruit slices are dehydrated uniformly and efficiently.

Inside each cabinet, you will find trolleys and racks that accommodate dehydrators of different sizes, ranging from 75 to 1200 kg. These dehydrators come with mesh trays, available in sizes ranging from 10 to 184. The mesh trays are made of galvanized or stainless steel, making them easy to clean. Additionally, they are covered with plastic that has a high melting point, which has been verified by the Ministry of Health.

To facilitate the operation of the dehydrator, it is equipped with an automatic Iran Radiator Burner and electric valve. When the thermostat signals the burner to turn on, the electric valve opens the gas to ignite the burner.

To ensure the proper functioning of the igniter and prevent breakdowns, an automatic relay is installed on the burner. This relay adjusts the igniter based on the signals from the thermostat. By installing the relay on the burner, the igniter stops working once the burner is turned on, preventing any potential damage.

The Iran Radiator Burner is designed to be economical and efficient. During the dehydrating process, sparking indicates that the burner is not continuously running. Instead, it ignites when the heat is reduced and turns off once the desired temperature is reached. This ensures energy efficiency and safe operation.

Dehydrating Duration and Temperature

The dehydrating temperature must be between 55 to 70 degrees centigrade.

The times are according to the temperature and humidity parameters.
